How Are Marine Fenders Performance-Tested?

Marine fenders are essential to protecting vessels and quay structures during berthing. To guarantee their reliability, a series of tests are carried out before they are delivered to clients. Below is an overview of the common procedures applied in fender performance testing.

Why Test Marine Fenders?

Testing ensures that fenders can absorb impact energy, resist harsh marine environments, and provide consistent performance over time. Proper testing not only reduces the risk of accidents but also minimizes long-term maintenance costs.

Key Testing Procedures

1. Preparation and Setup

Before testing begins, the fender is carefully inspected for visible defects. Instruments such as load cells, displacement sensors, and environmental chambers are prepared and calibrated to ensure accurate results.

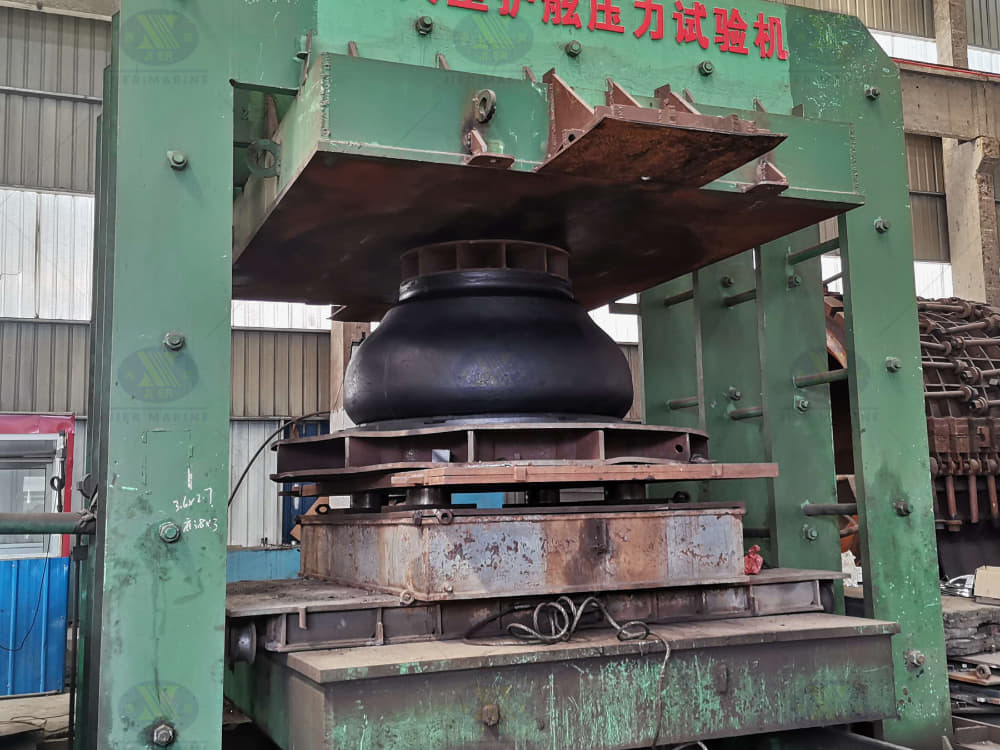

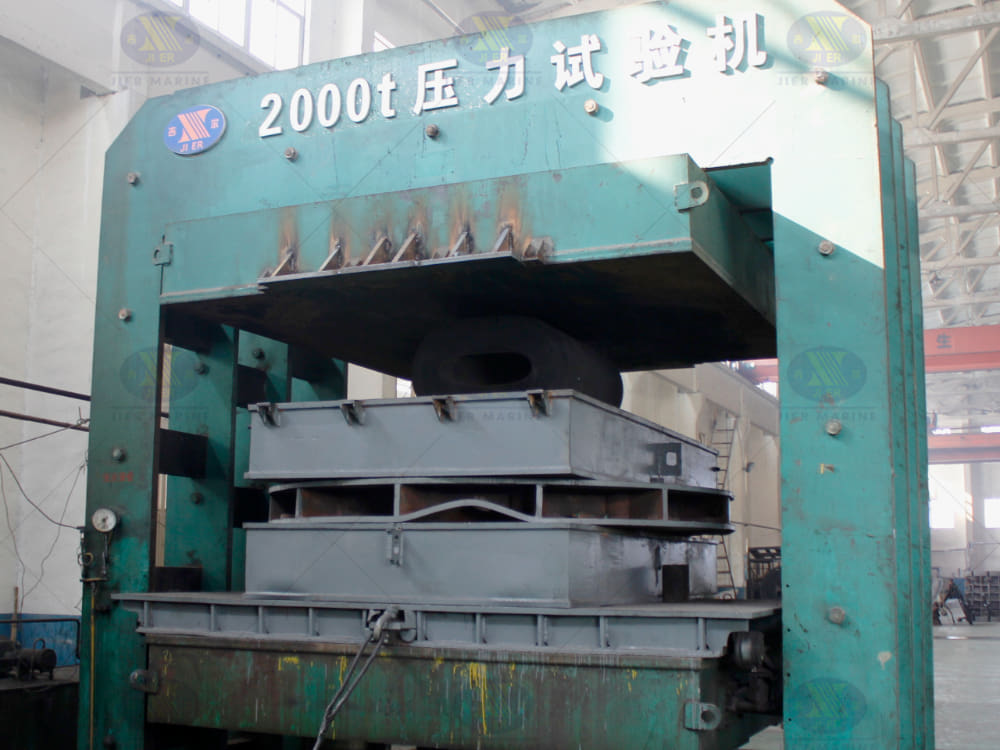

2. Compression Testing

This is the core test for energy absorption and reaction force. A controlled load is applied to the fender until a specified deflection is reached. Data collected here determines whether the fender meets international standards for impact performance.

3. Shear Force Testing

To simulate oblique berthing and lateral forces, the fender is subjected to shear loads. This step helps confirm its stability and ability to withstand side movements during docking operations.

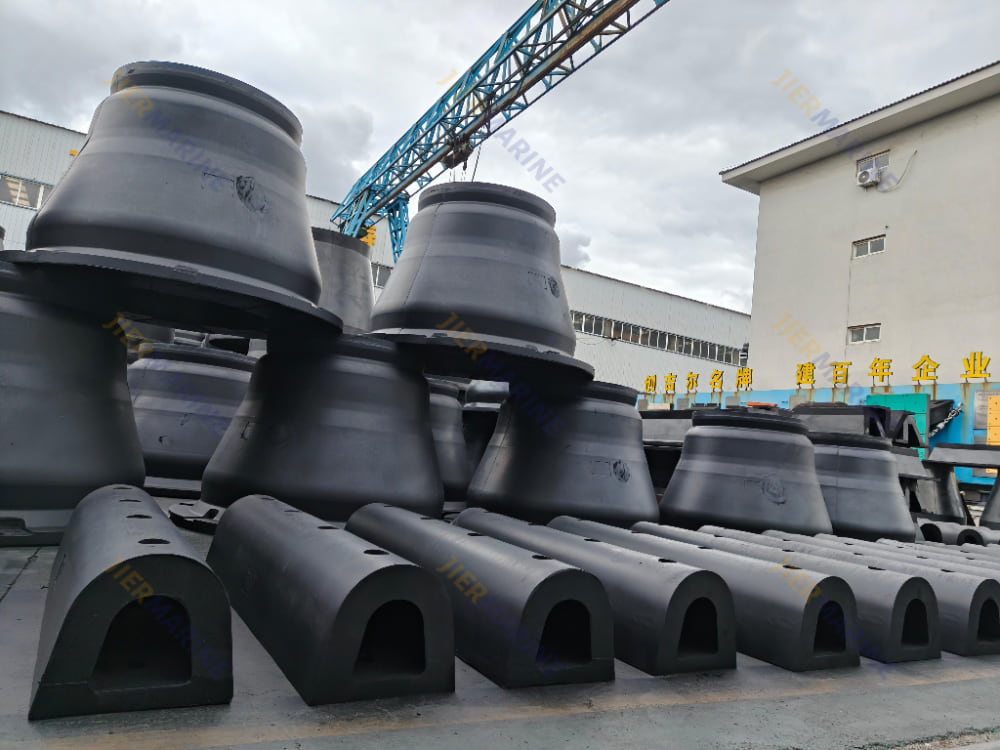

4. Environmental Resistance Testing

Fenders are exposed to conditions replicating real marine environments, including UV radiation, salt spray, and temperature variations. This test ensures durability in long-term service at busy ports.

5. Data Review and Certification

All results are compiled into test reports, which are compared against design parameters and international standards (such as PIANC). Only fenders that meet or exceed requirements are certified for delivery.

Conclusion

Fender performance testing is not just a quality check—it is a safeguard for ships, terminals, and crew. By replicating real-world forces and conditions, manufacturers can ensure that every fender performs reliably throughout its service life.
